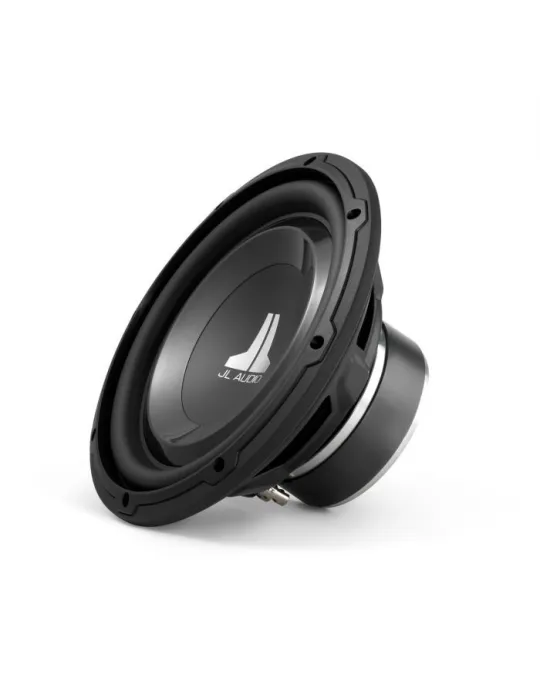

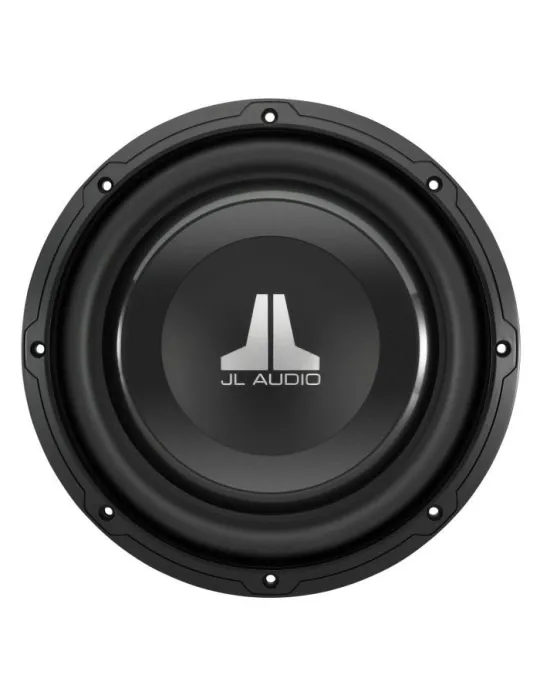

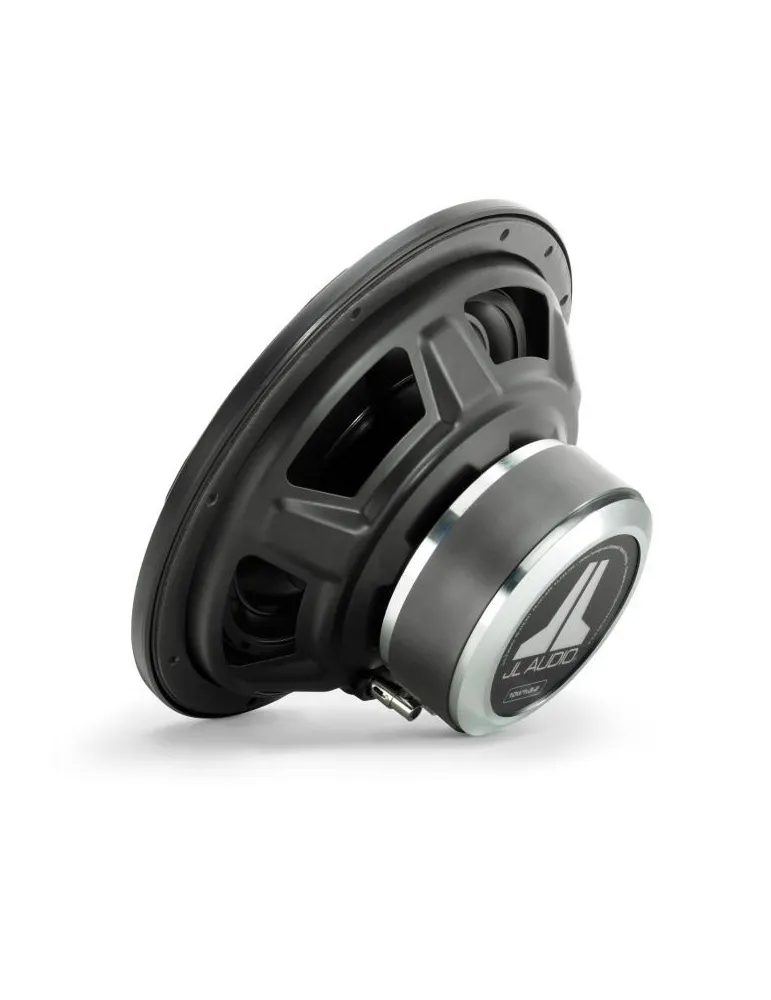

JL AUDIO 10W1V3-4 subwoofer | 10" 300W RMS
Write your review
€279.00
Tax included
Earn 27 points when you buy me!
worth €8.10!
Manufacturer warranty for all products
Fast and secure delivery
14 days return policy| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Nominal Impedance (Znom) | 4 Ω |
Physical Specifications
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246 mm |
| Motor Outer Diameter (D) | 4.92 in / 125 mm |
| Mounting Depth (E) | 4.6 in / 117 mm |
| Driver Displacement | 0.037 cu ft / 1.05 L |
| Net Weight | 9.9 lb / 4.5 kg |
Parameters
| Free Air Resonance (Fs) | 26.15 Hz |
| Electrical “Q” (Qes) | 0.475 |
| Mechanical “Q” (Qms) | 7.243 |
| Total Speaker “Q” (Qts) | 0.446 |
| Equivalent Compliance (Vas) | 1.533 cu ft / 43.41 L |
| One-Way Linear Excursion (Xmax)* | 0.45 in / 11 mm |
| Reference Efficiency (no) | 0.16% |
| Efficiency (1 W / 1 m)** | 84.2 dB SPL |
| Effective Piston Area (Sd) | 53.584 sq in / 0.0346 sq m |
| DC Resistance (Re) | 3.902 Ω |
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
Sealed Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.55 cu ft / 15.57 L |
| External Width (W) | 16.5 in / 419 mm |
| External Height (H) | 13.5 in / 343 mm |
| External Depth (D) | 7 in / 178 mm |
| F3 | 43.1 Hz |
| Fc | 50.9 Hz |
| Qtc | 0.868 |
Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.
Ported Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.9 cu ft / 25.5 L |
| External Width (W) | 17.0 in / 432 mm |
| External Height (H) | 11.5 in / 292 mm |
| External Depth (D) | 15.25 in / 387 mm |
| Internal Slot Port Width (SW) | 1.125 in / 28.6 mm |
| Internal Slot Port Height (SH) | 10.0 in / 254 mm |
| Internal Slot Port Length (SL) | 30.1875 in / 767 mm |
| Port Extension Length (EL) | 12.50 in / 318 mm |
| Tuning Frequency (Fb) | 32.17 Hz |
| F3 | 31.92 Hz |
