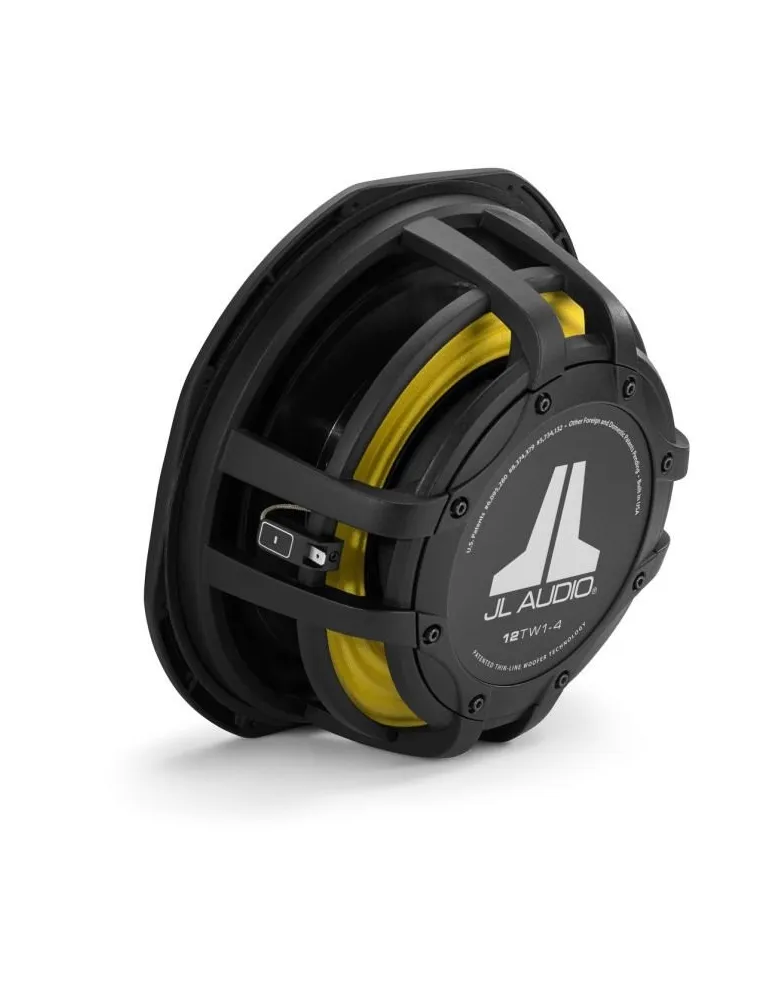

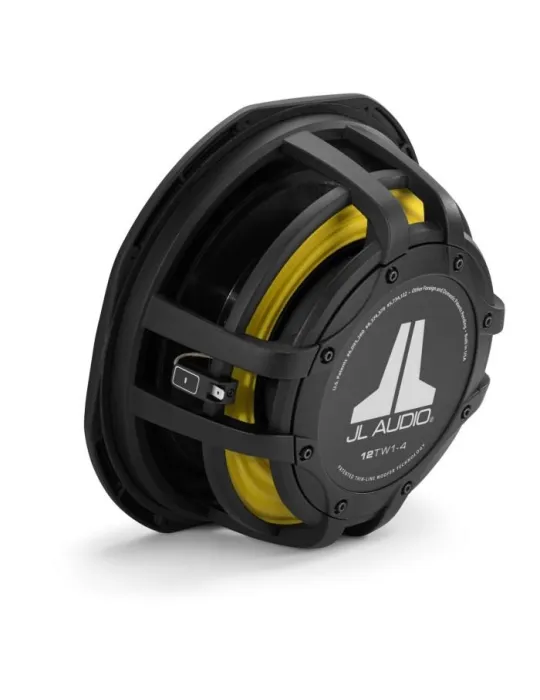

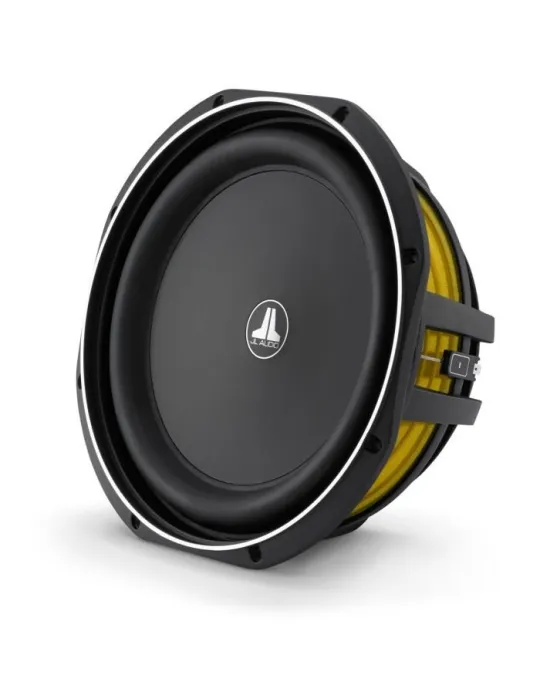

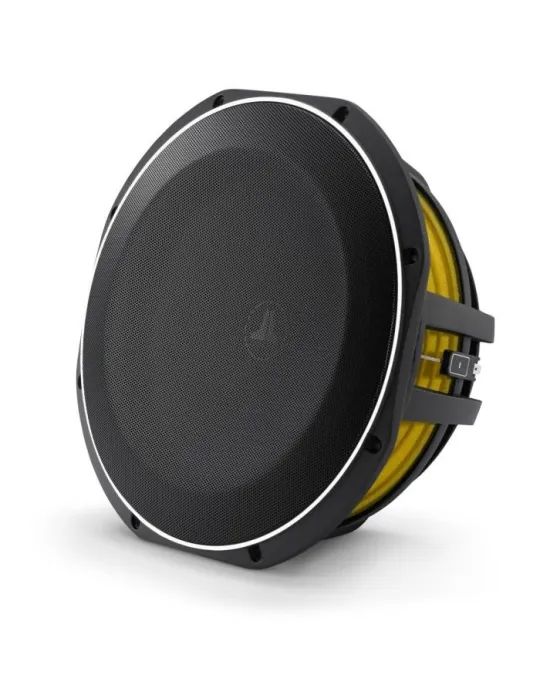

JL AUDIO 12TW1 slim subwoofer | 12" 300W RMS
Write your review
12TW1
€399.00
Tax included
Earn 39 points when you buy me!
worth €11.70!
Manufacturer warranty for all products
Fast and secure delivery
14 days return policy| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Nominal Impedance (Znom) | 4 Ω |
Physical Specifications
| Nominal Diameter | 12.0 in / 300 mm |
| Overall Diameter (A) | 12.375 in / 314 mm |
| Mounting Hole Diameter (B) | 11.0625 in / 281 mm |
| Bolt Hole Circle Diameter (C) | 11.7 in / 297 mm |
| Motor Outer Diameter (D) | 5.71 in / 145 mm |
| Mounting Depth (E) | 4.62 in / 117 mm |
| Front Grille Protrusion (F) | 0.87 in / 22 mm |
| Driver Displacement | 0.072 cu ft / 2.04 L |
| Net Weight | 16.5 lb / 7.5 kg |
Parameters
| Free Air Resonance (Fs) | 32.35 Hz |
| Electrical “Q” (Qes) | 0.555 |
| Mechanical “Q” (Qms) | 11.066 |
| Total Speaker “Q” (Qts) | 0.529 |
| Equivalent Compliance (Vas) | 1.189 cu ft / 33.67 L |
| One-Way Linear Excursion (Xmax)* | 0.40 in / 10.0 mm |
| Efficiency (1 W / 1 m)** | 85.15 dB SPL |
| Effective Piston Area (Sd) | 67.608 sq in / 0.0436 sq m |
| DC Resistance (Re) | 3.514 Ω |
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
Sealed Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.65 cu ft / 18.41 L |
| External Width (W) | 26.50 in / 673 mm |
| External Height (H) | 14 in / 356 mm |
| External Depth (D) | 5.50 in / 140 mm |
| F3 | 45.44 Hz |
| Fc | 54.41 Hz |
| Qtc | 0.89 |
Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.
Ported Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 1.125 cu ft / 31.86 L |
| External Width (W) | 31.75 in / 806 mm |
| External Height (H) | 16 in / 406 mm |
| External Depth (D) | 7 in / 178 mm |
| Internal Slot Port Width (SW) | 5.50 in / 140 mm |
| Internal Slot Port Height (SH) | 2.25 in / 57 mm |
| Internal Slot Port Length (SL) | 22.625 in / 575 mm |
| Port Extension Length (EL) | 20.75 in / 527 mm |
| Tuning Frequency (Fb) | 34.0 Hz |
| F3 | 31.79 Hz |
Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.
