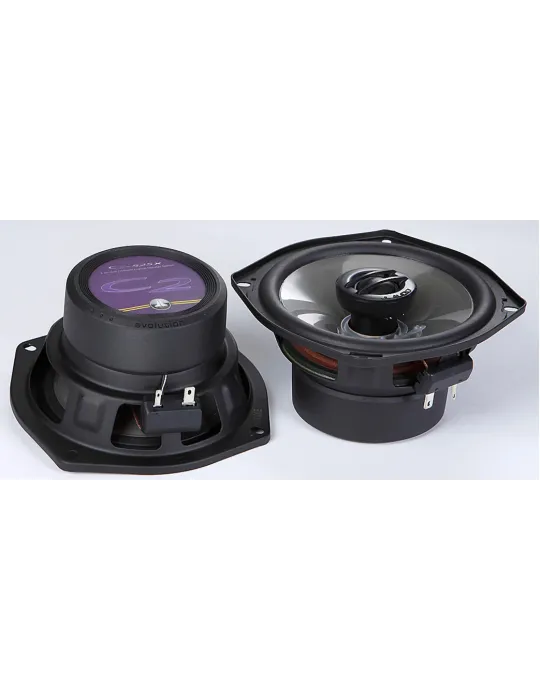

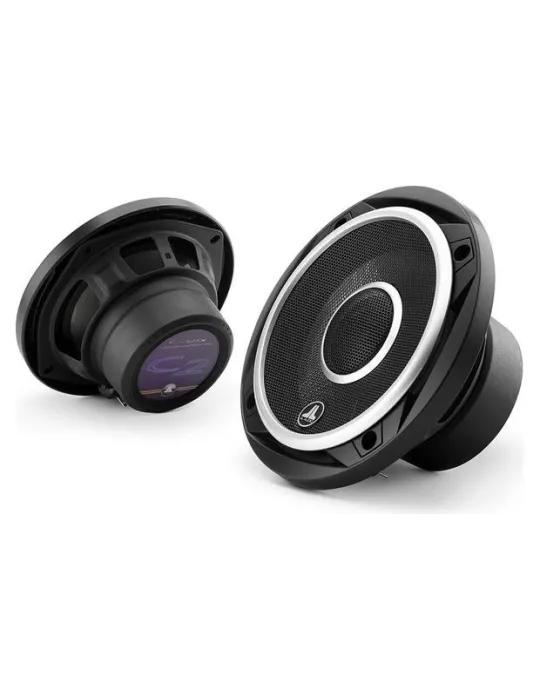

JL AUDIO C2-525X 13cm coaxial speakers (pair)

JL Audio
€279.00
Tax included
Quantity

Loyalty Points
Earn 27 points  when you buy me!
worth €8.10!
HomeCar audioSpeakersCoaxial speakers
  Manufacturer warranty for all products
  Fast and secure delivery
  14 days return policy
Description

General Specifications

Continuous Power Handling (RMS)60 W
Peak Music Power225 W
Recommended Amplifier Power (RMS)15 - 100 W / Ch.
System Efficiency89.0 dB @ 1 W / 1 m
System Nominal Impedance4 Ω
System Frequency Response63 Hz - 22 KHz ± 3 dB

Coaxial Physical Specifications

Table_Image
Frame Outer Diameter* (A)5.20 in / 132 mm
Grille Tray Outer Diameter (B)6.01 in / 153 mm
Motor Outer Diameter (C)2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion** (D)0.46 in / 12 mm
Frontal Grille Protrusion*** (E)0.72 in / 18 mm
Mounting Hole Diameter (F)4.56 in / 116 mm
Mounting Depth (G)2.50 in / 64 mm

*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
***Frontal grille protrusion measured from mounting surface
