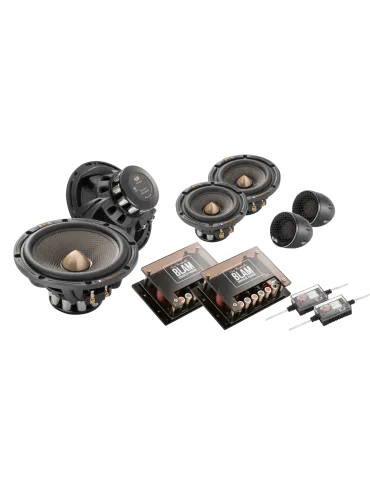

BLAM Signature/Multix S165 M3 3-way Hi-end component speakers

Woofer WS6 – HIGH POWER WOOFER
6-1/2‘‘ (165 mm) woofer
Maximal power: 250 W / Nominal power: 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance : 2 Ω

Die Cast aluminium basket – Ultra rigid 3K carbon fiber cone – NBR surround – Double damper with integrated wires – 38 mm voice coil on fiber glass former – Oversized 10 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB.

Medium MS3 – EXTENDED FREQUENCY SPEAKER
80 mm (3’’) extended frequency medium
Maximal power: 100 W / Nominal power: 25 W
Frequency response: 120 Hz – 32 KHz
Impedance 3 Ω

Die Cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround – Long life damper – 20 mm voice coil on fiber glass former – Ultra powerful 8 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1 dB.

Tweeter TSM25Mg 45 HR – HIGH RESOLUTION TWEETER
25 mm (1’’) pure magnesium dome tweeter
Frequency response: 1.2 KHz – 23 KHz
Sensitivity : 89 dB – Impedance : 5 Ω

High efficiency neodymium magnet (N38) High precision machined aluminium faceplate
Sound transparent protection grill

Crossovers Multix WOMID AUDIOPHILE GRADE CROSSOVERS
Audiophile components
High pass 6/12 dB/octave crossovers
Adjustable frequency between 150 and 500 Hz

Crossovers BFT01 HIGH QUALITY CROSSOVERS
High pass 12 dB/octave crossover
Adjustable tweeter level at +3 dB, 0 dB or -3 db
