BLAM Relax 100RFS component speakers

Technical specification

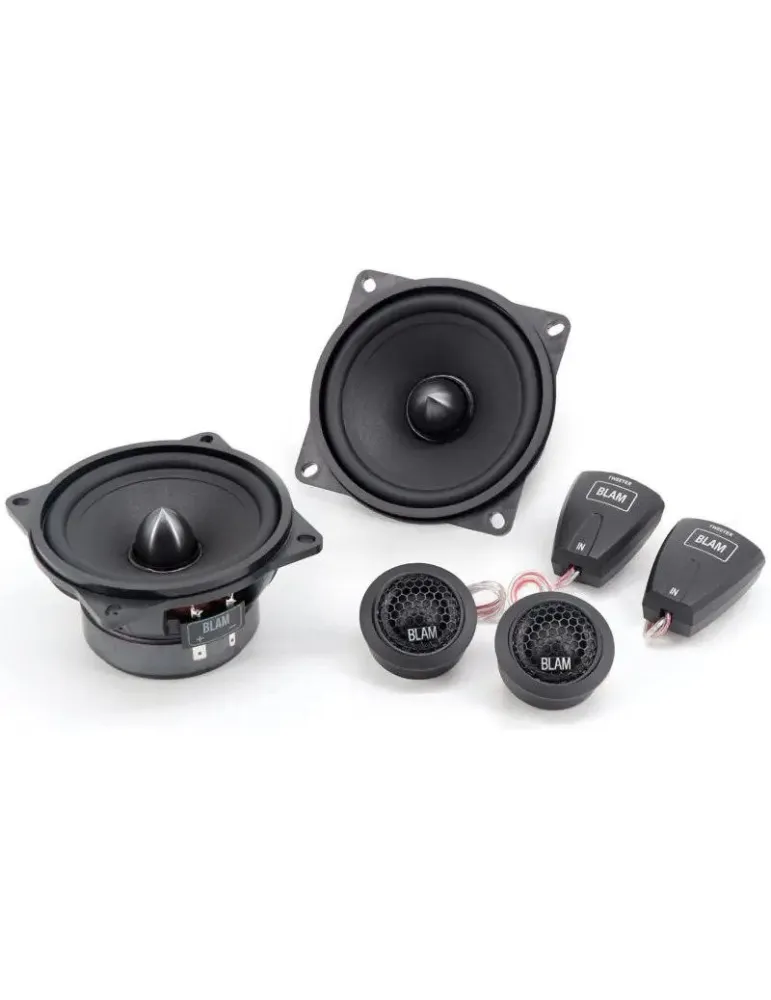

This kit includes 2 x 100 mm (4″) woofers, 2 x 20 mm soft dome tweeters and 2 x 6 dB/octave high-pass crossovers.

Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω

Composition

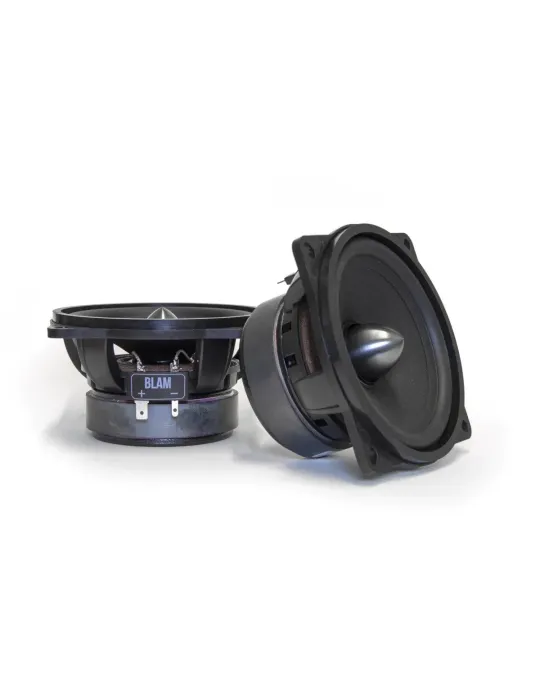

Woofer:
Original BLAM composite basket reinforced with fiberglass
High quality treated cellulose pulp membrane
Butyl rubber surround
Long life “Conex” damper
25 mm (1”) voice coil on kapton former
70 mm x 15 mm ferrite magnet
Thick magnetic circuit (4 mm)

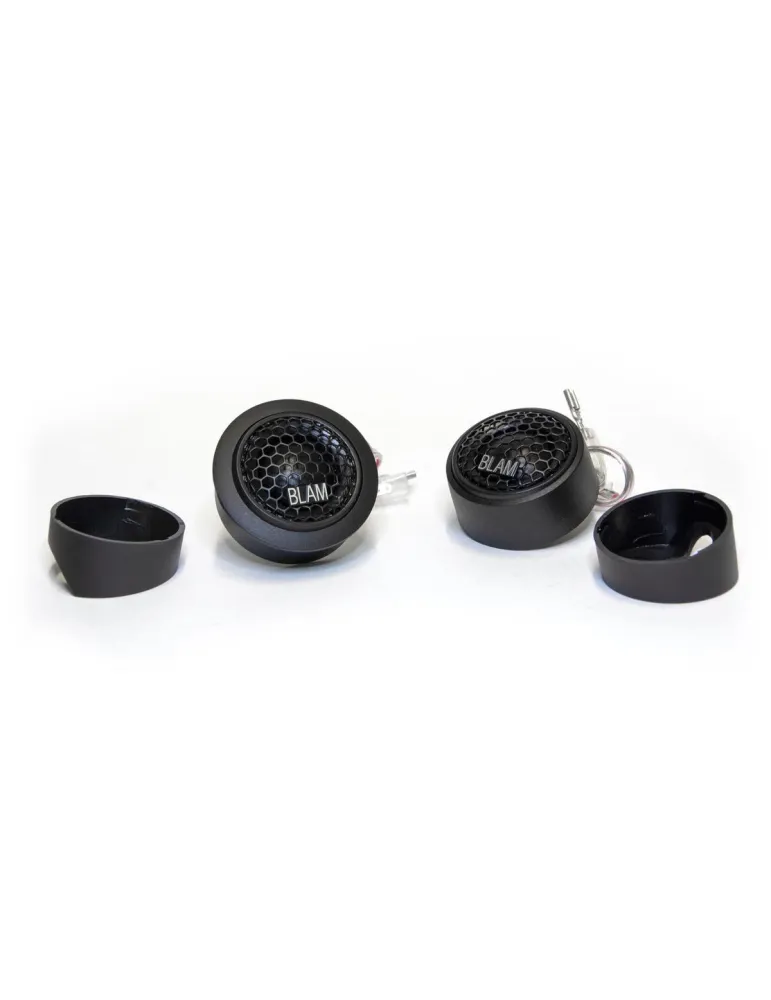

High quality 20 mm (3/4”) soft dome tweeter

6 dB/octave high pass crossover
Tweeter level adjustable to 0 dB or attenuated to -3 dB

Supplied accessories
Mounting screws
Mounting accessories for tweeters
User manual
