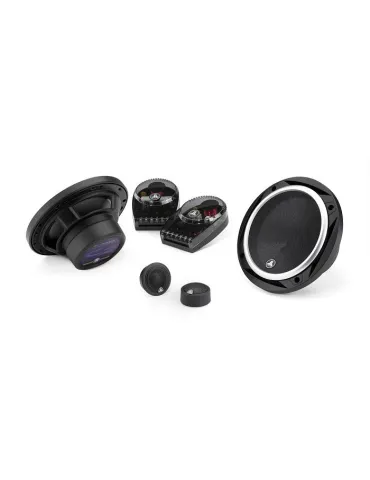

JL AUDIO C2-650 16,5cm component speakers (set)
Write your review
€329.00
Tax included
Earn 32 points when you buy me!
worth €9.60!
Manufacturer warranty for all products
Fast and secure delivery
14 days return policy
General Specifications
Continuous Power Handling (RMS) | 60 W |
Peak Music Power | 225 W |
Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
System Efficiency | 91.0 dB @ 1 W / 1 m |
System Nominal Impedance | 4 Ω |
System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
Woofer Physical Specifications
Frame Outer Diameter* (A) | 6.5 in / 165 mm |
Grille Tray Outer Diameter (B) | 6.84 in / 174 mm |
Motor Outer Diameter (C) | 3.15 in / 80 mm |
Frontal Coaxial Tweeter Protrusion (D) | N/A |
Frontal Grille Protrusion** (E) | 0.85 in / 22 mm |
Mounting Hole Diameter (F) | 5.56 in / 141 mm |
Mounting Depth (G) | 2.44 in / 62 mm |
*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface
Tweeter Physical Specifications
Flush Mount Fixture Diameter (A1) | 1.87 in / 48 mm |
Surface Mount Fixture Diameter (A2) | 1.69 in / 43 mm |
Flush Mount Mounting Hole Diameter (B) | 1.625 in / 41 mm |
Flush Mount Mounting Depth (C) | 0.76 in / 19 mm |
Flush Mount Tweeter Frontal Protrusion (D1) | 0.29 in / 7 mm |
Surface Mount Tweeter Frontal Protrusion (D2) | 0.92 in / 23 mm |
Crossover Physical Specifications
Width (W) | 3.36 in / 85 mm |
Height (H) | 1.44 in / 37 mm |
Depth (D) | 4.72 in / 120 mm |
