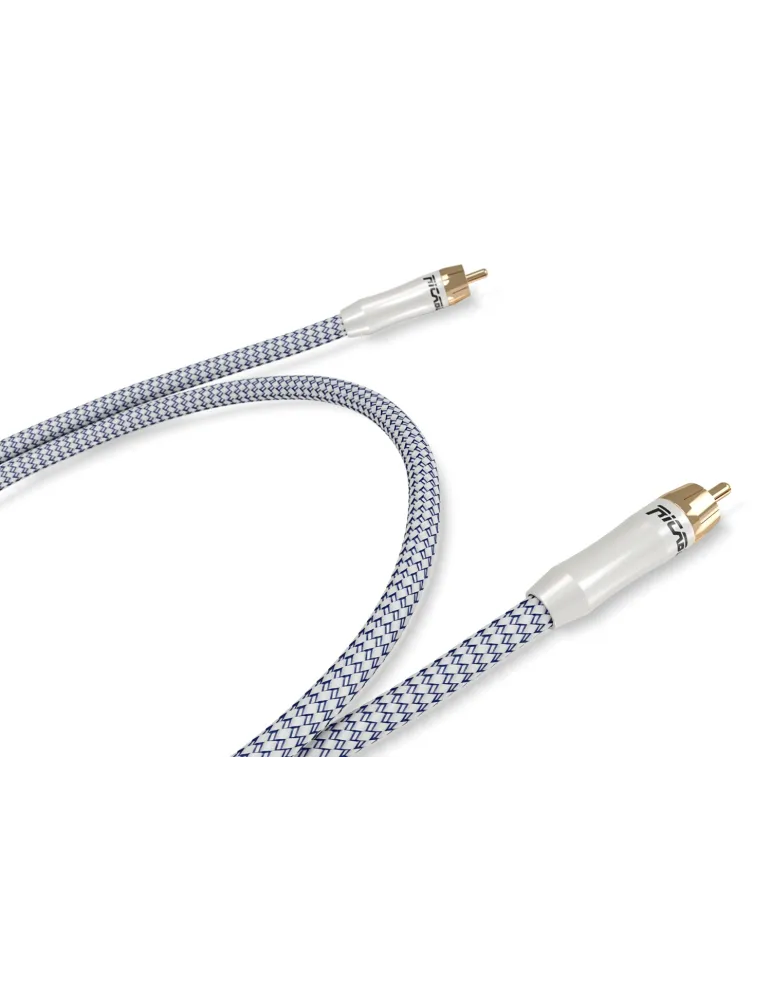

Ricable Primus Coaxial digital cable
Key features
Primus Coaxial is designed to provide you with quality support. Designed and handmade in Italy, it is well calibrated for all Entry Level systems and allows your electronics not to deteriorate the listening experience due to the poor quality cables you find in the box.
The Primus series is the ideal starting point for the entry into High Fidelity, it guarantees to first level systems the right connection, thanks to a constructive realization derived from the leading products Ricable . Despite being the entry level range, it strikes a balance between price and performance.
- CONDUCTOR: The 0.8 mm2 Solid Core conductors are made of 99.999% pure OFC copper.
- GEOMETRY: 75 Ohm coaxial geometry with polyethylene dielectric.
- CONNECTORS: Gold-plated RCA connectors with hot pole and reinforced ground rings for better connection. Teflon dielectric.
- DOUBLE SHIELDING: Dual outer copper shielding and inner Aluminium/Mylar foil shield all audio frequencies from EMI/RFI interference.
- PRODUCT: Primus Coaxial is handcrafted in Italy from materials that allow for high flexibility and preserve the performance of your system, extending its life.
Technical specifications
Capacity | 90 pF/m |
---|---|
Impedance | 75 Ω |
Resistance | 42 Ω/km |
External diameter | Ø 8 mm |
Conductor Section | 0.8 mm |
Structure Conductors | 1 Solid Core wire |
Diameter strand | 0.8 mm |
Material Conductors | Pure OFC copper (Oxigen Free Copper) 99.999%. |
Geometry | Coaxial |
Dielectric Insulator | Polyethylene foam |
External shielding | Tinned Copper Braid + Aluminium Foil |
External Protection | Oversized PVC sheath + Nylon braid |
Contact | Hand-welded with special Eutectic Alloy Sn/Ag/Cu |
Features Connectors | 6-element ground ring, Alloy body entirely plated with 24 K gold, Teflon dielectric, Antidistortion alloy |
