4-CHANNEL PLUG & PLAY AMPLIFIER WITH INTEGRATED DSP
Plug and play installation in the car without cutting original wires (different cables available). Delivered with cables.
- RMS Power (4 Ohms) when powered directly from Battery 70 W x 4
- RMS Power (4 Ohms) when powered from OEM Wires 50 W x 4
- Frequency response: 20 Hz ~ 20 KHz
- Distortion: 1 KHz < 0.1%
- Supply voltage range: 9 V – 15 V
- Signal/Noise ratio: > 90 dB
- Standby current: < 0.4 mA
- Class-D amp efficiency: 95%+
- Maximum operating current: 30 A
- Dimensions (L x W x H): 184 x 114 x 38 mm
COMMON DSP FEATURES
Sigma DSP 28-/56-bit 50 MIPS digital audio processor 24-bit stereo audio ADC and DAC: >98 dB SNR Sampling rates 96 kHz
704 DSP PRO

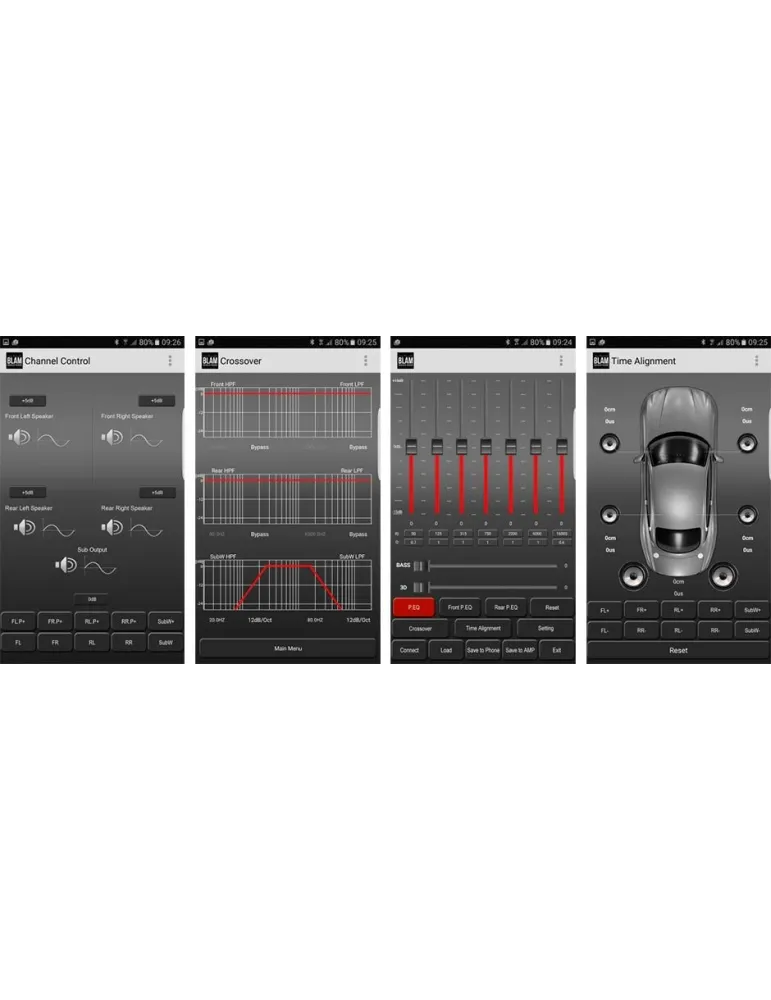

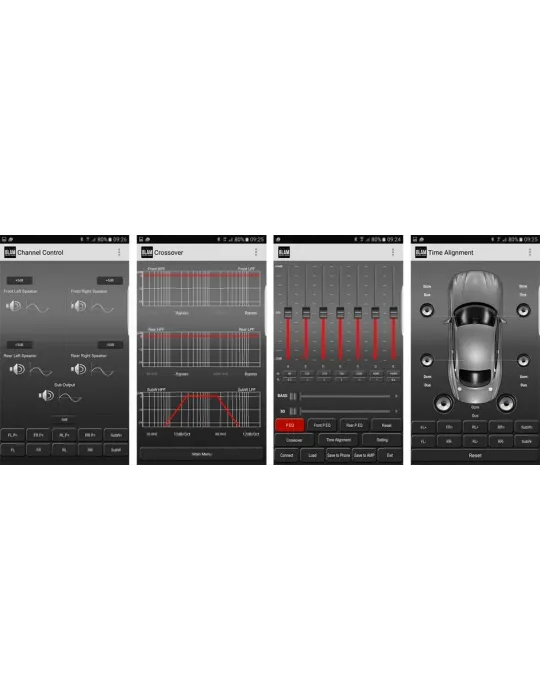

Bluetooth connection and control of DSP settings via Android and Iphone apps
Time alignment adjustable from 0 up to 2.30 m for each speaker – 7 bands Parametric EQ for front and rear speakers – Fully customizable crossover from 0 to 24dB / octave on all outputs – 6 RCA outputs for connecting additional amplifiers including 2 fully cofigurable for subwoofers – 5 favourites settings memorized in the amplifier – Unlimited setting memorised in the phone – 3D Surround Sound – Adjusting the bass independent – Setting the phase and the activation of each channel.
