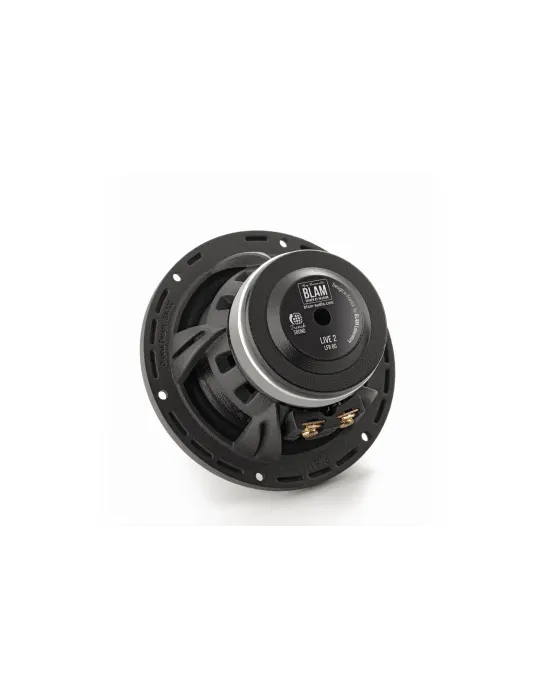

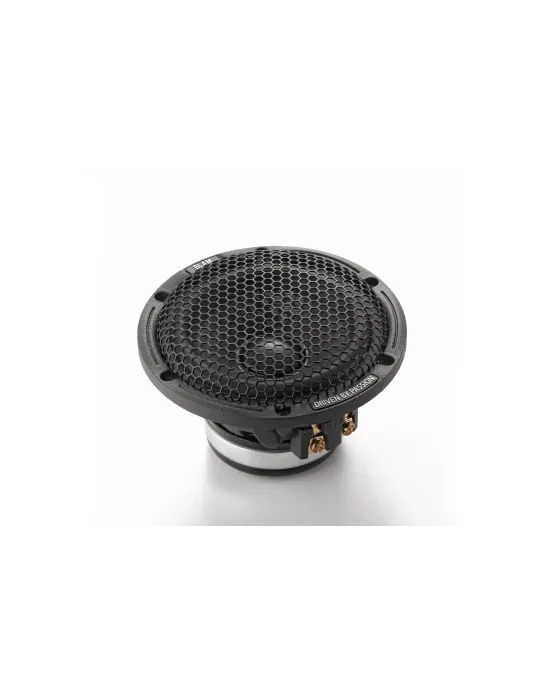

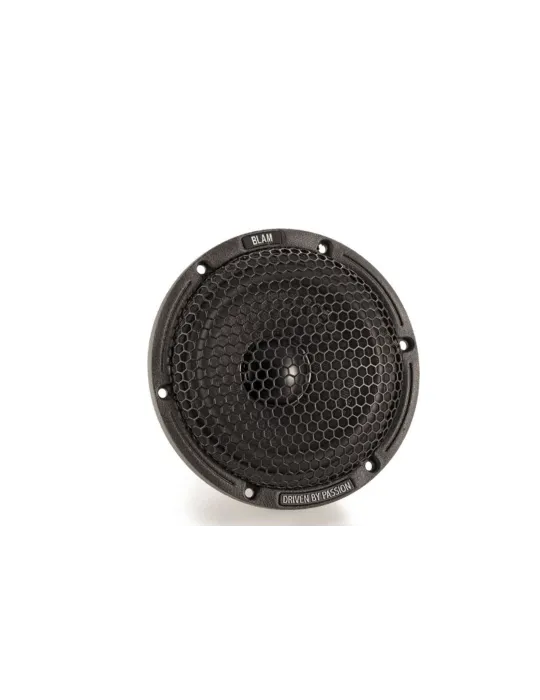

BLAM Live LFR80 mid-range drivers (pair)

Thanks to its very linear frequency response that extends into the extreme high frequencies, the LFR80 will reproduce music with an incredible resolution that will drive you to rediscover all your favorite music tracks.

This system includes two 80 mm (3″) full range driver

80 mm (3″) full range driver
Max power 100 W – Nominal power 25 W
Frequency response 150 Hz – 37 kHz
Sensibility 91 dB – Impedance 3 Ω

• Depend upon the cut-off frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave


Composition

LFR80 80 MM (3”) FULL RANGE DRIVER
Max power 100 W – Nominal power 25 W
Frequency response 150 Hz – 37 kHz
Sensibility 91 dB – Impedance 3 Ω
Mounting depth 45 mm (1.8’’)

Die cast aluminium basket – Epoxy resin and glass fiber cone – Butyl surround – Long-life “Conex” damper – 20 mm (0.8”) voice coil with TIL former – 50 mm x 10 mm (1.9” x 0.4”) neodymium magnet

Optimized for sealed enclosure volume from 0.3 L to 0.5 L
Minimal required cut off frequency: 300 Hz 12 dB/octave

Supplied accessories :
Mounting screws
Protective grill
User manual

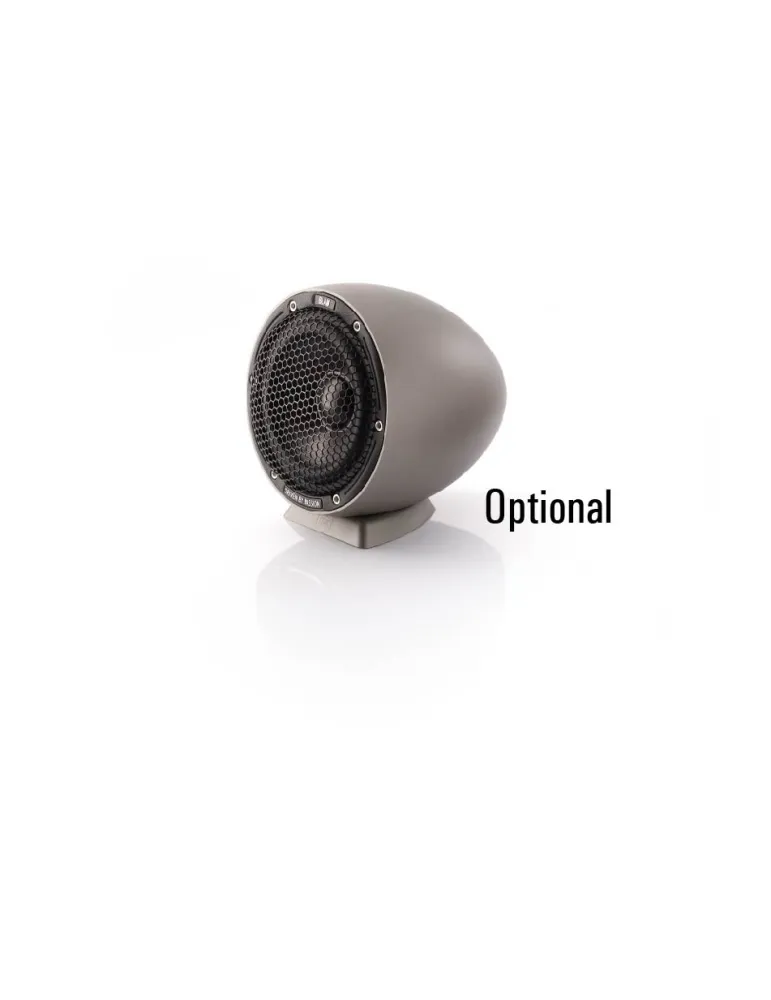

OS80 compatible with LFR80
MACHINED SOLID ALUMINIUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
