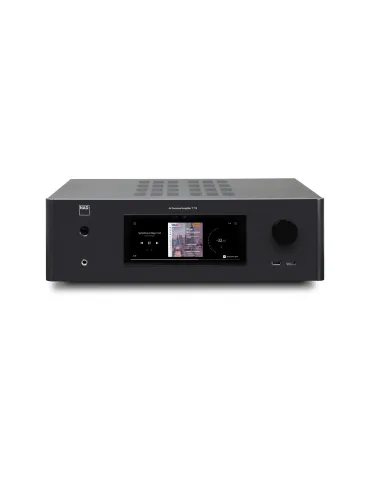

NAD T778 9ch home cinema amplifier

NAD’s reference Audio Video Receiver (AVR) is a cutting-edge powerhouse for state of the art music and home theater. Well known for our high value/ high performance reputation in the AVR category, the brand’s reference model builds on that legacy with an expansion of unwavering philosophy of real-world performance, simplicity of operation, and future upgradeability.

Features

• 9 channels of NAD’s latest Hybrid Digital Amplifier Technology
• New touch screen and improved ergonomics for user-friendly operation
• 4K UHD video pass-through
• HDMI CEC/eARC
• High-Res BluOS enabled Network Streaming
• Dirac Live Room Correction
• Full decoding of MQA content via BluOS.
• Apple AirPlay 2, ROON Ready, Tidal Connect, Spotify Connect
• MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided.
• CI friendly- RS232 Serial Control Port. Trigger In/Out.

Specifications

• 8 Ohms
• 140W (21.5dBW)
• 4 Ohms
• 170W (22.3dBW)
• Full Disclosure Power (all channels driven simultaneously at full bandwidth at rated distortion)
• 9 x 85W
• IHF Dynamic Power
• 8 Ohms
• 165W (22.2dBW)
• 4 Ohms
• 280W (24.5dBW)
• Total harmonic distortion at rated power
• <0.08%
• IM distortion at 1/3 rated power
• <0.03%
• Damping factor
• >300 (20Hz-1kHz, 8 ohms)
• Input sensitivity and impedance
• 1.12Vrms (ref. 8 Ohms, VOL at 0dB)
• Frequency response
• +0.3/-0.8dB (ref. 1kHz, 20Hz-20kHz)
• Signal/noise ratio
• >100dB (ref. rated power at 8 Ohms, A-Weighted)
• Signal/noise ratio
• >85dB (ref. 1W at 8 Ohms, A-Weighted)
