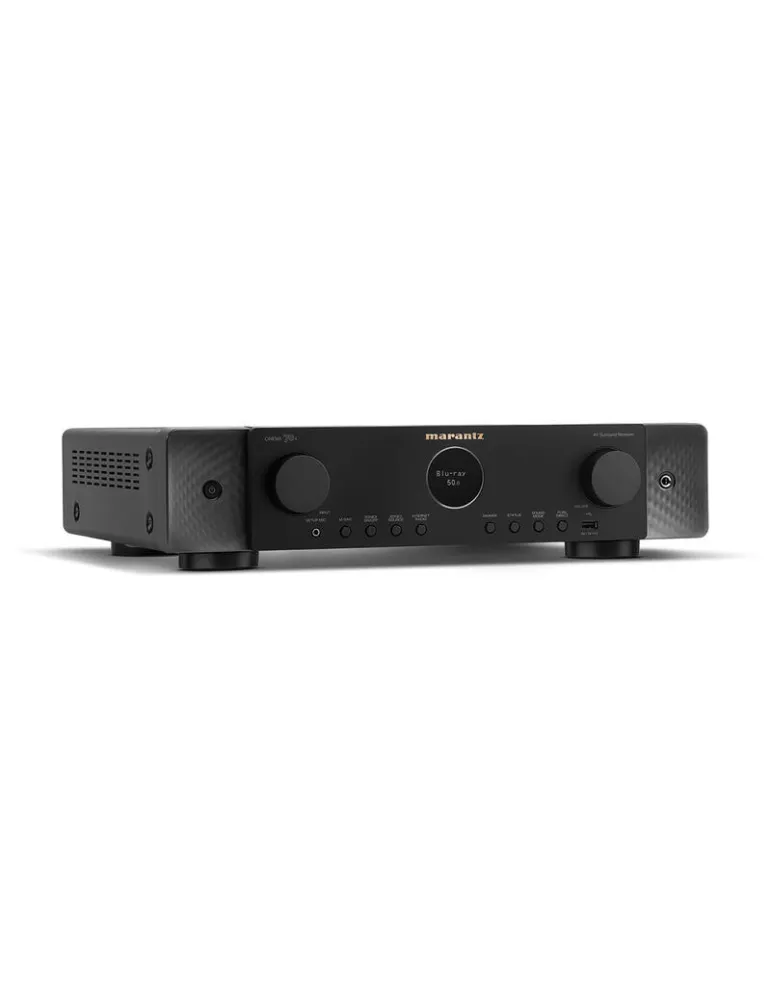

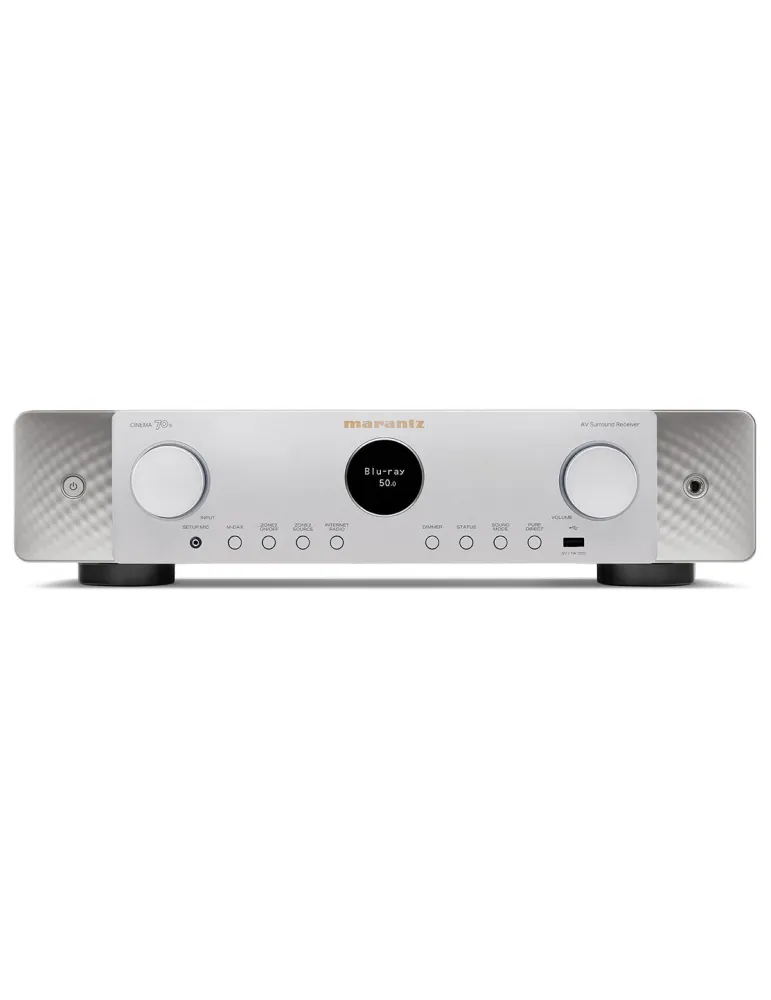

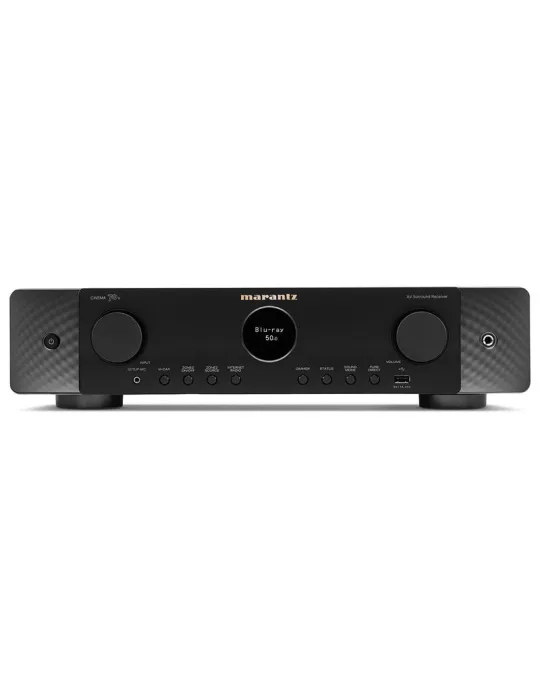

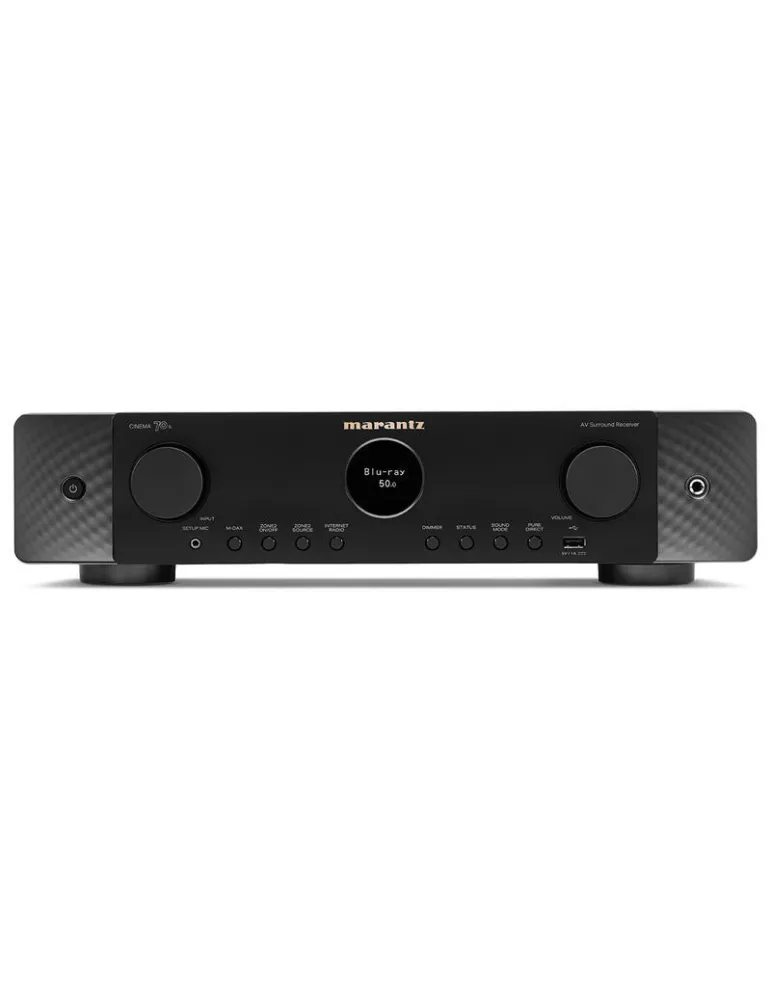

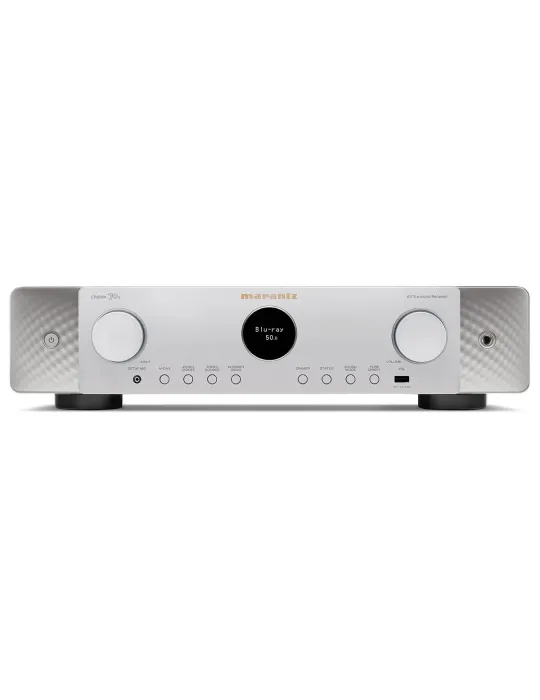

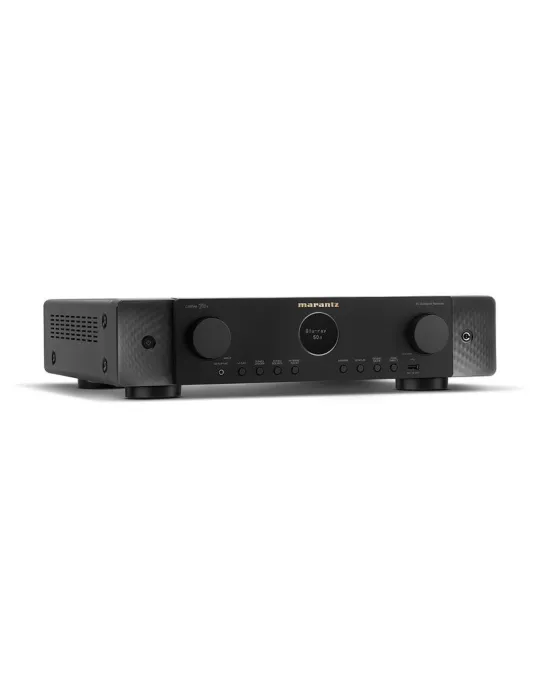

Marantz Cinema 70s slim home cinema amplifier
Performance
The Marantz Sound Master meticulously tuned CINEMA 70s for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Style

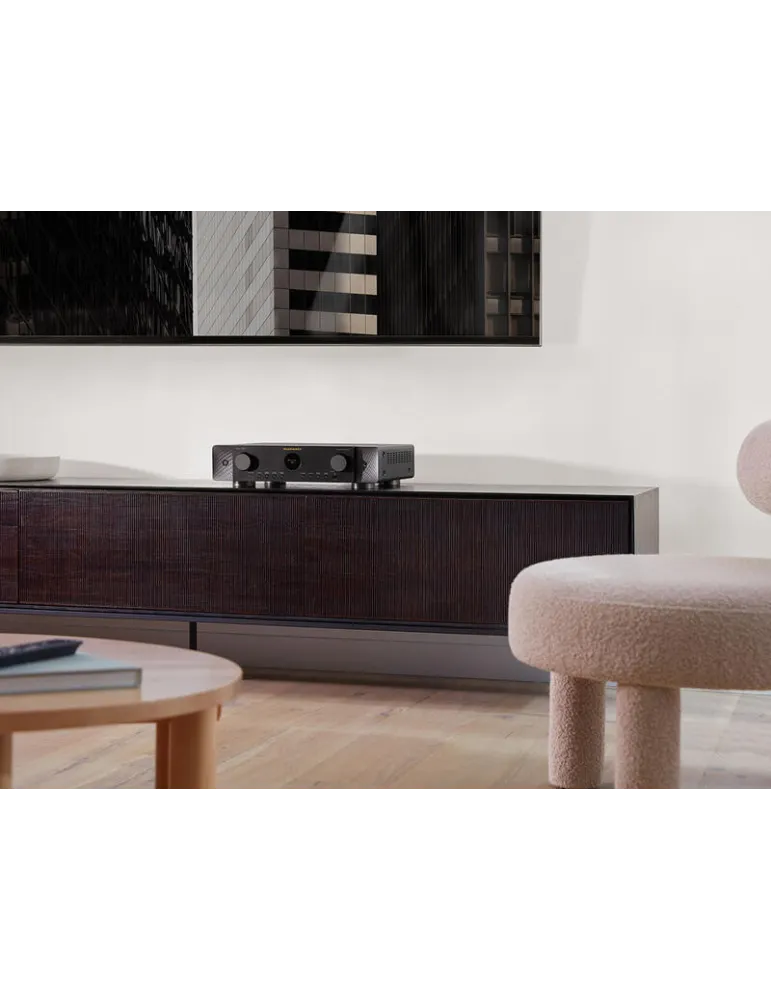

Excellence is heard and seen. CINEMA 70s slimline design is less than half the height of many receivers, but the design remains luxurious with every element carefully considered.
Customizability
Thoughtfully selected connectivity options and fine-tuning ability allow you to make CINEMA 70s your own.
Effortless

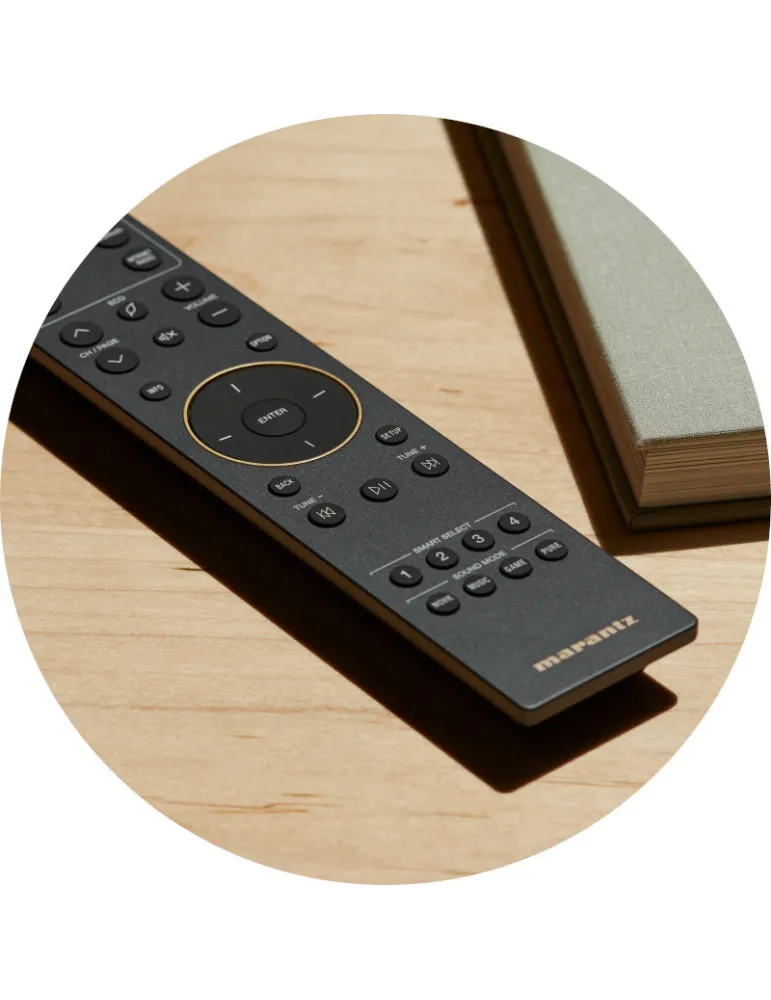

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
Compatibility

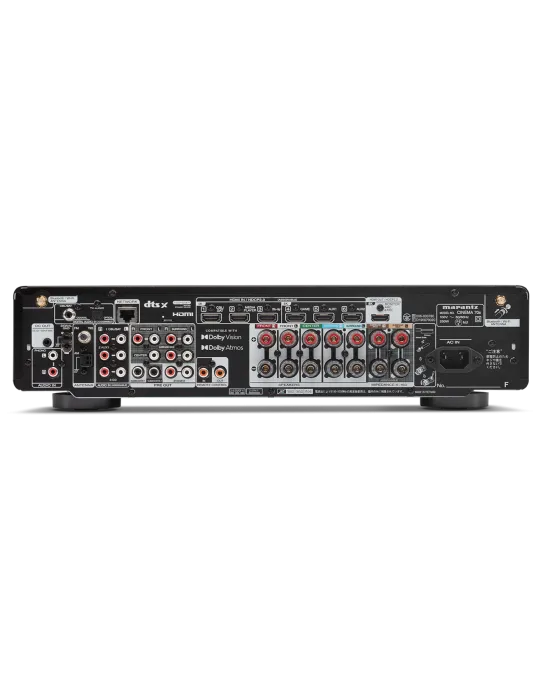

Six HDMI inputs, plus digital, analogue and phono inputs plus loudspeaker and preamp outputs ensure connectivity to virtually any other components you may have.
Technical specifications:
Number of Powered Channels | 7 |
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 50 W |
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | - |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 70 W |
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 100 W |
70% Guarantee | Yes |
Discrete Power Amplifier | Yes |
Amplifier Topology | Class A/B |
Current Feedback Topology | No |
Bi-Amp Drive | assignable |
DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
Other | |
Max Number of Processing (Preamp) Channels | 7.1 |
Total HDMI Inputs / No. Support 8K | 6 / 3 |
HDCP2.3 support | Yes |
HDMI Outputs: Main / Zone | 1 / 0 |
Analog to HDMI Video Conversion | No |
HDMI Upscaling | 1080P/4K to 8K |
Max resolution @ framerate | 8K/60Hz, 4K/120Hz |
Audio Return Channel | ARC, eARC |
Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
Variable Refresh Rate / Quick Frame Transport | Yes / Yes |
HDMI Pass-Through in Standby Mode | Yes |
CEC | Yes |
DSD Audio over HDMI | No |
Auto LipSync | Yes |
Audyssey | MultEQ |
Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
Audyssey LFC | No |
Dirac Live Support | No |
Variable Cross Over | Yes |
Optimized Bass Redirection | Yes |
Bass Sync | No |
Power Consumption in W | 250 |
Power Consumption No-Sound (ECO on/off) in W | 30 / 40 |
Standby Consumption in W | 0.2 |
CEC Standby Consumption in W | 0.5 |
Network Standby Consumption in W | Less than 2.0 |
Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm | 442 x 384 x 109 ( 442 x 384 x 178 ) 【 442 x 372 x 109 】 |
Weight in kg | 8.7 |
What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
