TAGA Harmony TSF-002 speaker feet and spike set

€35.00
Tax included
Quantity

Loyalty Points
Earn 3 points  when you buy me!
worth €0.90!
HomeAccessoriesSpikes and pads
  Manufacturer warranty for all products
  Fast and secure delivery
  14 days return policy
Description

Design Set of 4 speaker feet-spikes
Height 19.7 mm (without spikes)
44.7 mm (min incl. spikes)

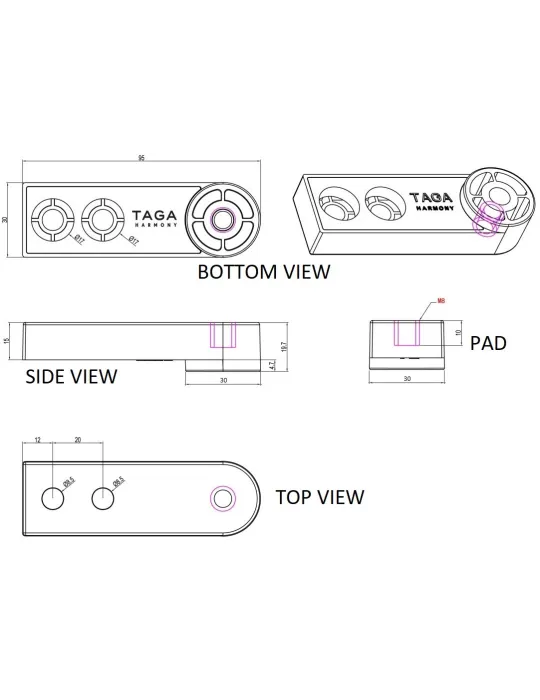

Foot dimensions Lenght: 95 mm
Width: 30 mm
Height: 15 – 19.7 mm
Top pad: height 10 mm / diameter 30 mm

Distance:
Rear foot edge to rear bolt hole center: 12 mm
Between centers of bolt holes: 20 mm
Spike dimensions Total height: 59 mm
Min height (fully screwed in): 25 mm
M8 thread
Spike height adjustment range 0 - 3 mm (in foot)
Maximum speaker weight 45 kg / set
(on 4 x feet-spikes or 4 x spikes)
Installation requirements Two threaded M8 sockets
Min socket depth: 25 mm

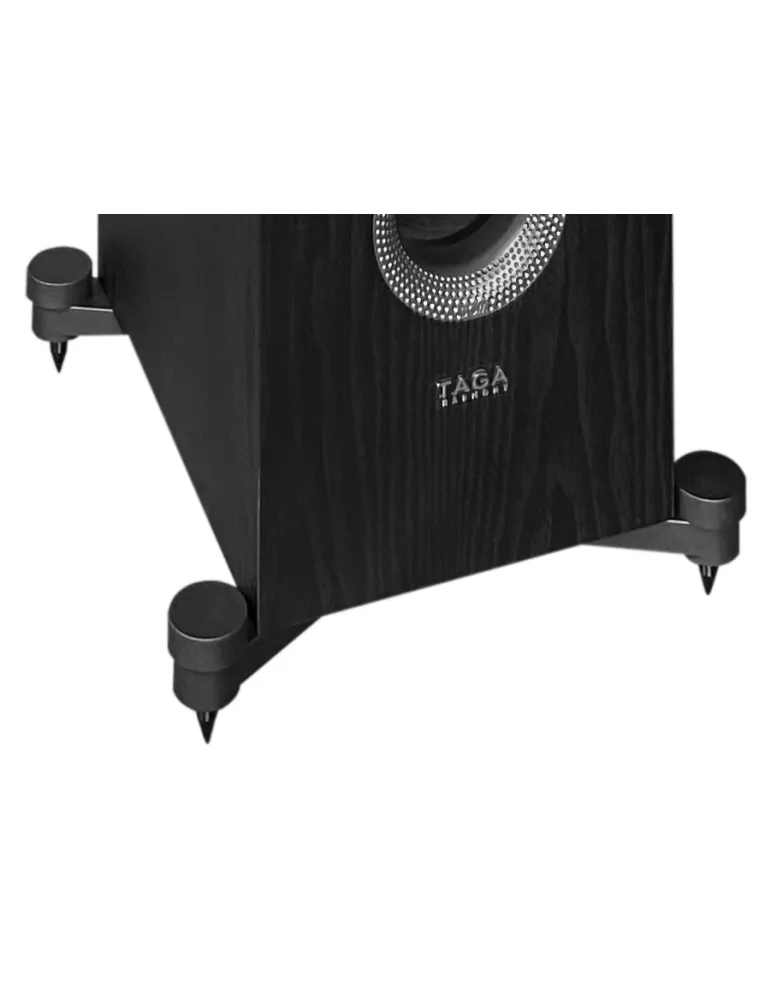

TAGA Harmony compatible speakers Ready-to-use (equipped with M8 sockets):
TAV-807F
TAV-607F
TAV-507F

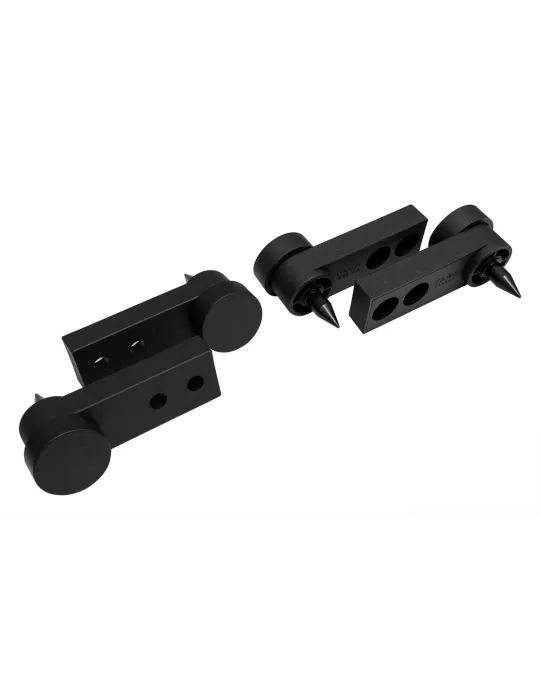

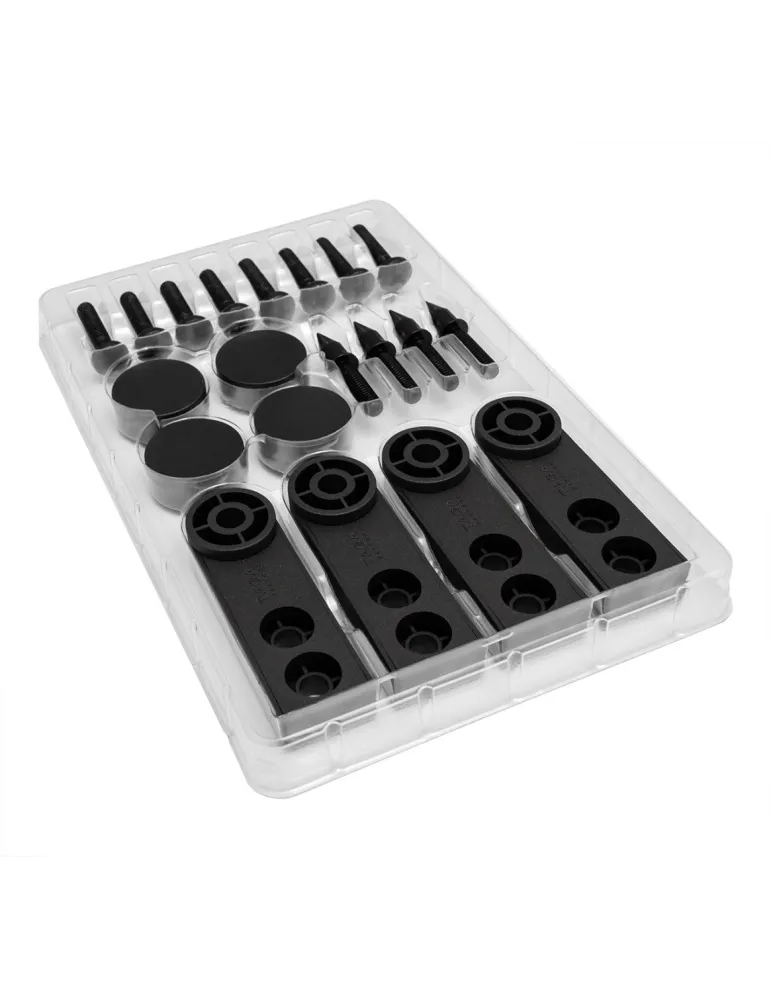

Set content Foot x 4 pcs.
Round top pad x 4 pcs.
Aluminum spike x 4 pcs.
M8 bolt x 8 pcs.
Weight 0.6 kg / set
