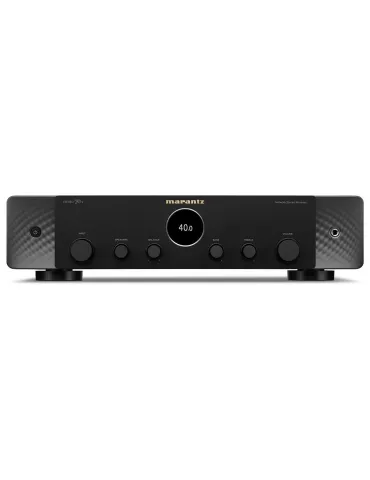

Marantz Stereo 70s stereo receiver with HDMI
Get serious home cinema with only two speakers. All the technology found in full-size surround sound AV receivers in a slimline, stereo receiver. 75-watts-per-channel, with 8K HDMI, subwoofer output, and streaming built-in.
75 Watts Per Channel
The fully discrete stereo amplifier produces clear, detailed, warm, spacious, and dynamic sound from any source.
8K HDMI
Six HDMI inputs (3x 8K) are compatible with streamers, game consoles, Blu-Ray players and more. HDMI-ARC enables simple connection to your TV or projector.
Dual Subwoofer Outputs
Add deep and impactful bass with two subwoofer outputs. Tune bass to perfection using extensive speaker and subwoofer configuration options accessible through the menu.
Pre-Amp Output
Leverage pre-amp mode to connect to an external amplifier for even higher sound quality and more power should you decide to upgrade later.
HEOS® Built-in Multi-Room Streaming
HEOS® Built-in technology lets you enjoy your favorite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room—the choice is yours.
POWER AMPLIFIER
Number of Powered Channels | 2 |
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 75 W |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 100 W |
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 150 W |
Discrete Power Amplifier | Yes |
Amplifier Topology | Class A/B |
INPUTS/OUTPUTS
HDMI In / Out | 6 / 1 |
Analog In / Fixed Level Out | 3 in / out |
Phono (MM) In | Yes |
Digital In: Optical / Coaxial | 1 / 1 |
Multi-Room Out: analog / digital | 1 / 0 |
Multichannel Preamp Out | 2.2 |
Subwoofer Out | 2 |
Number of Speaker Terminals | 4 |
Speaker A / B | Yes |
USB Audio | USB A (Host) |
AM/FM Tuner | Yes |
HDMI SPECIFICATIONS
Total HDMI Inputs / No. Support 8K | 6 / 3 |
HDCP2.3 support | Yes |
HDMI Outputs: Main / Zone | 1 / 0 |
HDMI Upscaling | 1080P/4K to 8K |
Audio Return Channel | ARC |
Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
Variable Refresh Rate / Quick Frame Transport | Yes / Yes |
HDMI Pass-Through in Standby Mode | Yes |
GENERAL
Power Consumption in W | 210 |
Standby Consumption in W | 0.2 |
CEC Standby Consumption in W | 0.5 |
Network Standby Consumption in W | Less than 2.0 |
Maximum Dimensions | 【 w/o Antenna :(W x D x H) in inches 】: 【 17.4 x 14.7 x 4.3 】 |
What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
