ELAC Miracord 80 turntable
ELAC Miracord 80 Turntable
In an ever-changing world, vinyl remains the constant. The Miracord 80 demonstrates yet again ELAC’s long-standing association with vinyl.
STYLISH DESIGN
Focusing on an all-embracing experience: The stylish design combines a plinth milled from solid wood, with high- gloss or veneered finishes, and brushed anodized aluminum panels. An optional cover can be added to protect the delicate mechanism from unwanted dust.
PERFECT MUSIC REPRODUCTION
The long list of features paves the way for perfect music reproduction. The high-mass turntable with its 5.6-kg platter provides the necessary inertia in the system while the PID-controlled DC motor ensures the correct number of revolutions per minute. This excellent speed stability is augmented by the 10“ carbon fiber tonearm, whose geometry reduces the inherent tracking angle error.
Tonearm type | Real carbon fiber |
---|---|
Effective tonearm length | appr. 10 |
Speed accuracy | +/- 0.33%@3 kHz |
Wow & flutter | < 0.15 % |
Crosstalk damping | > 25 dB |

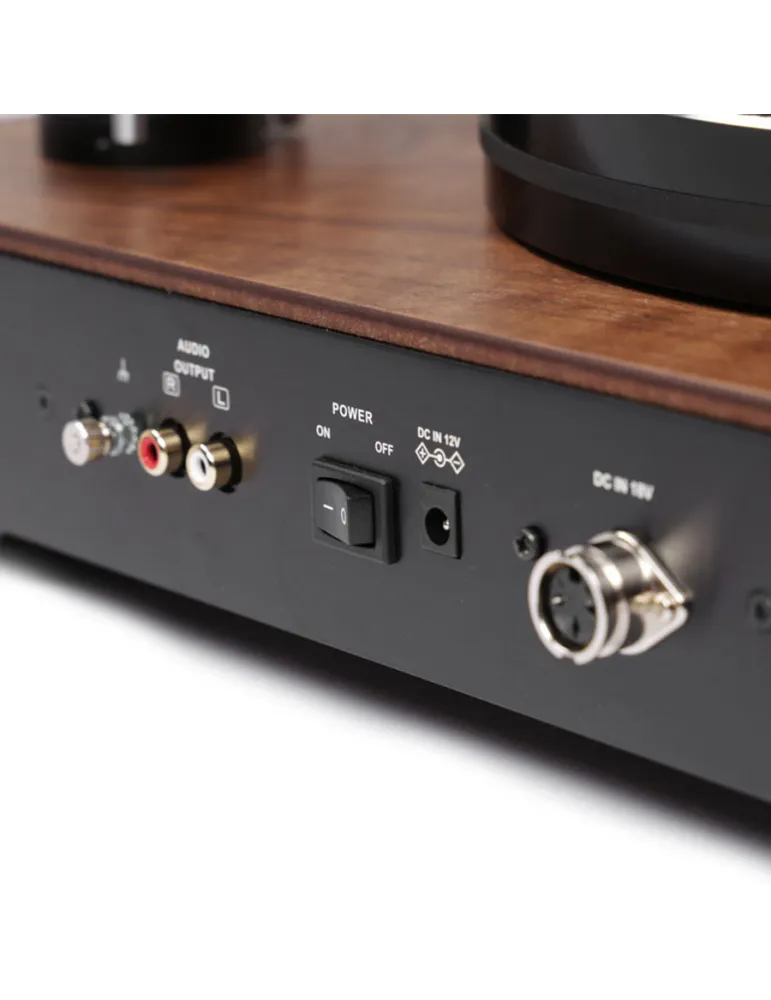

Connectivity | Gold plated RCA jacks, ground terminal |
Speed | 33.3 and 45 pm |
Platter weight / dimensions | 5.6 kg / > 298 mm diameter, 30 mm height |
Drive | optically controlled platter rotation speed, PID-controlled DC motor, belt drive |
Power consumption | 1.5 W (less than 0.5 W in standby) |
Max. dimensions | 470 × 374 x 148 mm (W x D x H) |
Weight | 14 kg |
