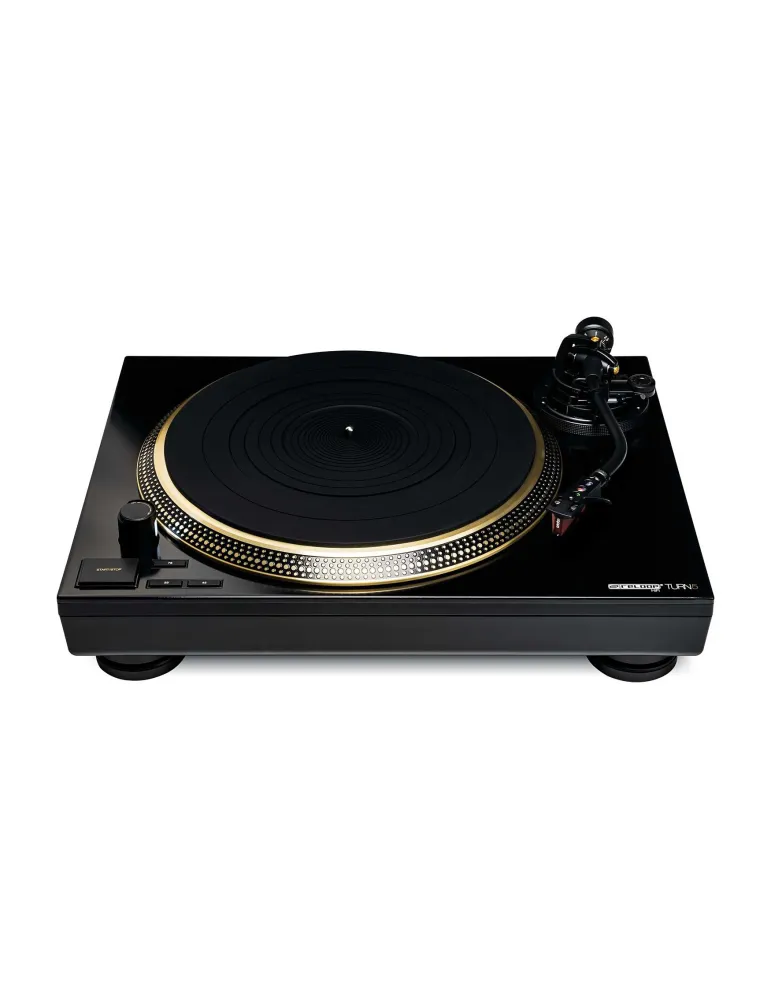

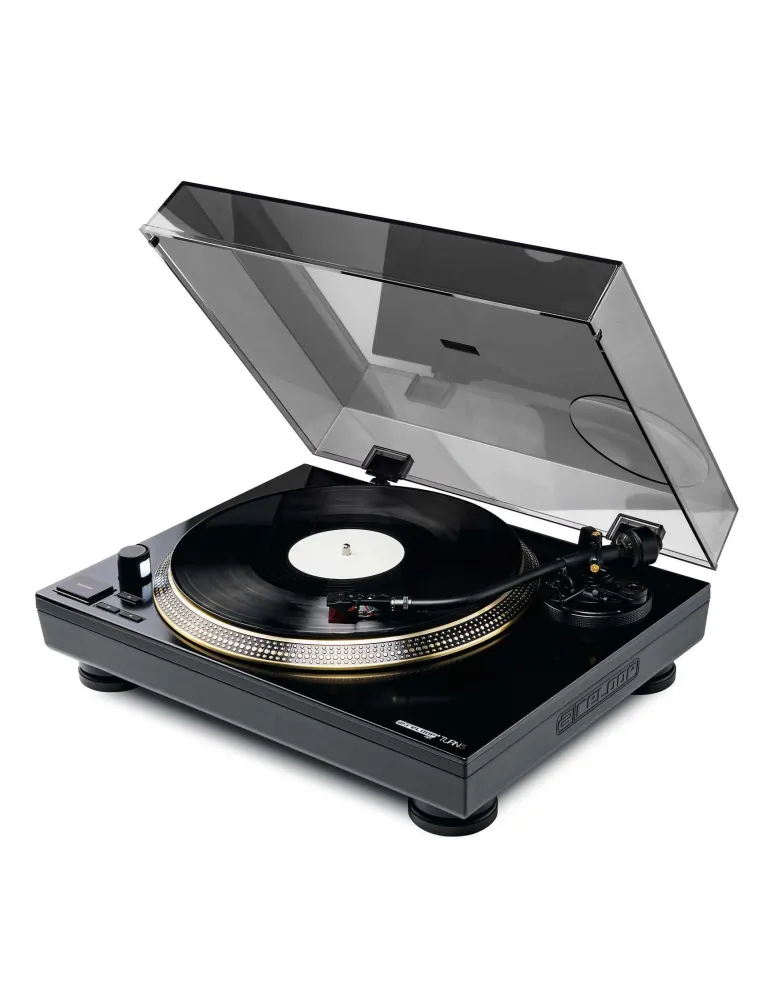

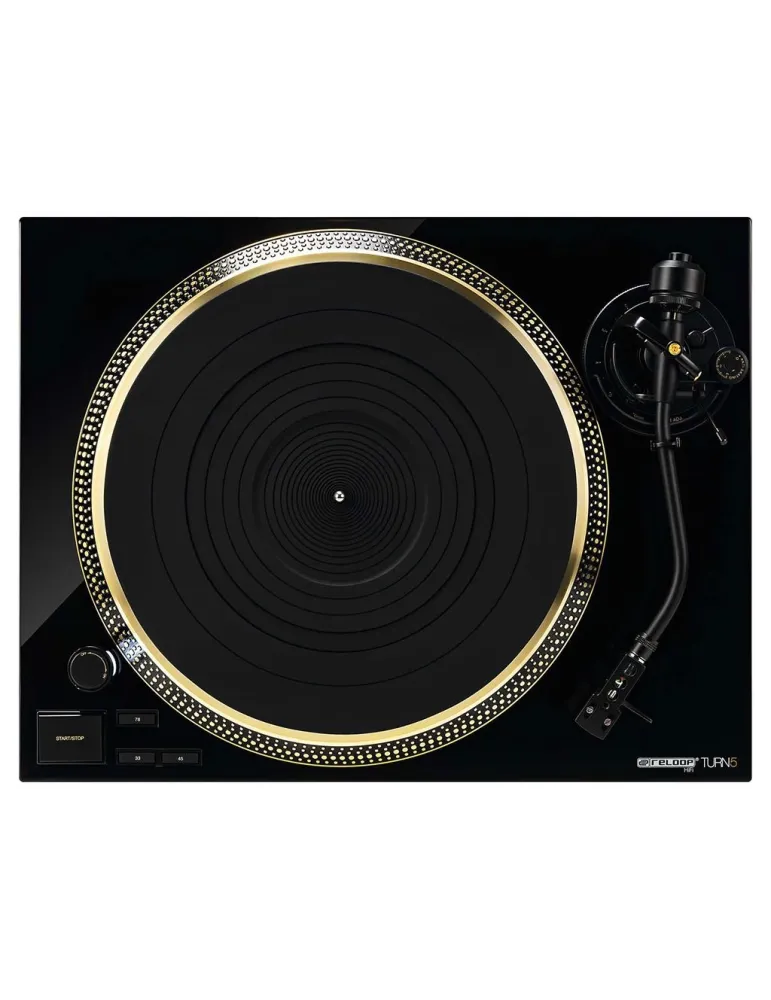

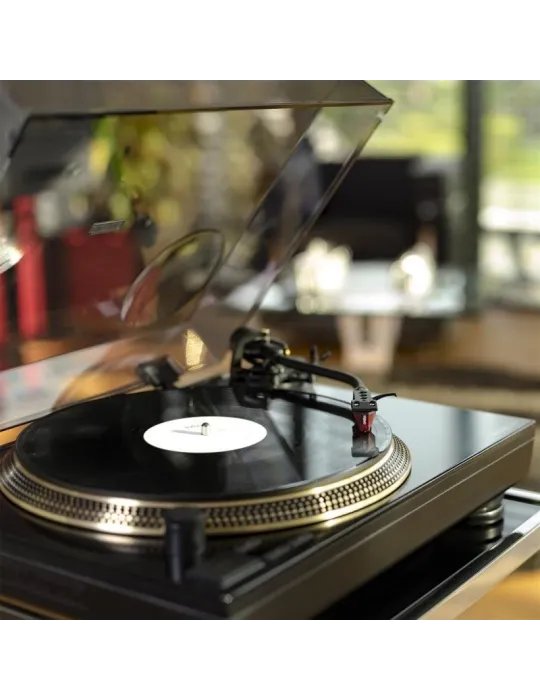

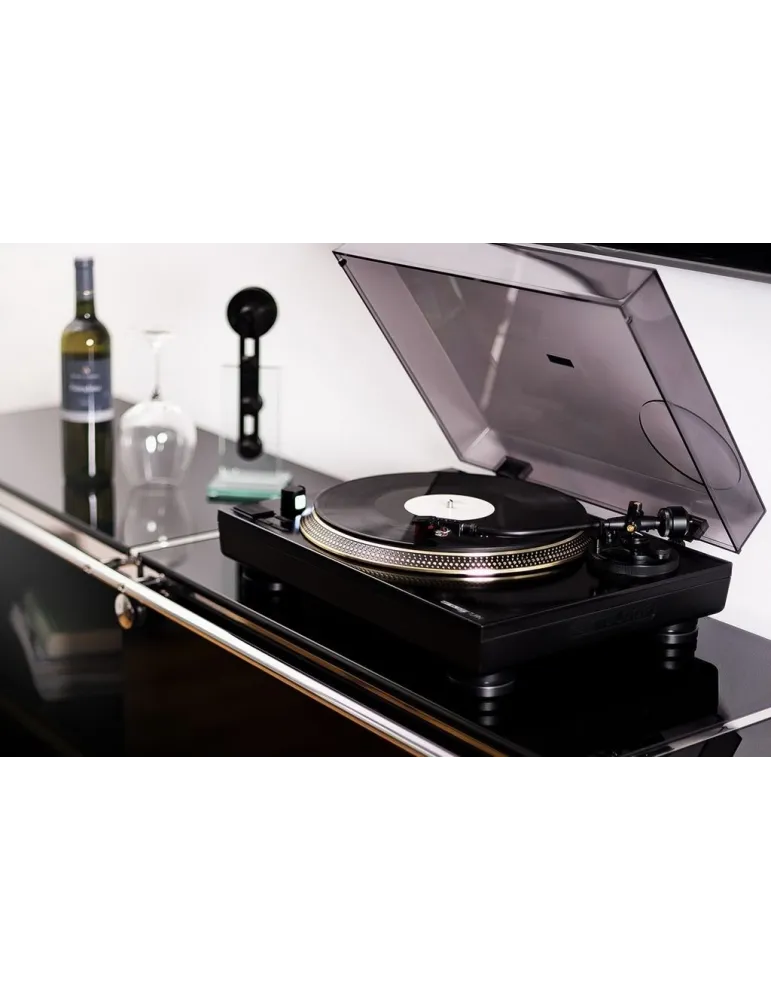

Reloop HiFi Turn 5 direct drive turntable | Ortofon 2M Red cart

Direct Drive
HiFi Turntable System

With TURN5 Reloop HiFi is launching a quartz-controlled, direct-drive turntable that meets the highest sound requirements. Using our expertise we have developed a new HiFi turntable, which with its technical sophistication is the best in its class.

FEATURES

• Quartz-Controlled HiFi turntable with high torque
• Brushless Direct Drive DC Motor
• Precision machined Die-Cast Aluminium Turntable Platter for a perfectly balanced rotation
• Deadening Rubber covering rear platter surface & special 5mm rubber mat for optimized resonance control and damping
• Static-balanced S shaped tonearm with VTA adjustment
• Adjustable anti-skating dial for improved cartridge tracking
• Pre-installed Ortofon 2M Red cartridge
• Integrated motor control selector for conveniently selecting three different speeds (33, 45 and 78 RPM)
• Universal headshell connector (SME) provides added flexibility

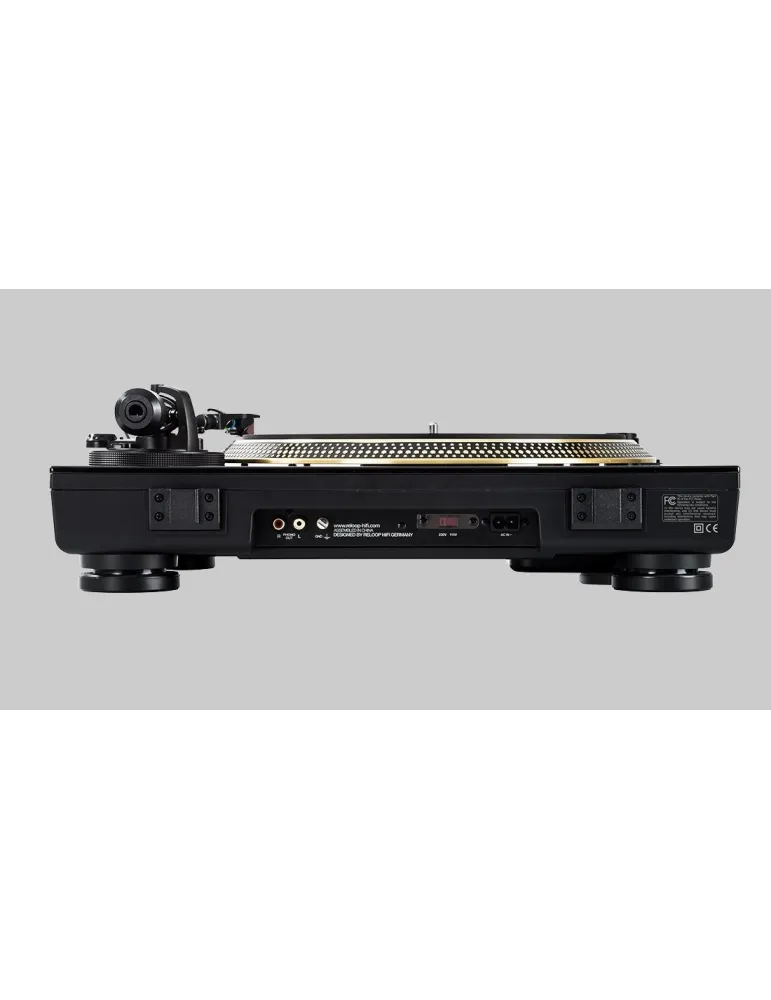

• High Quality Phono outputs (with separate grounding connection)
• Gold-plated, corrosion resistant audio outputs (power and RCA cables detachable)
• Sunk-in terminal cavity for protected connection
• Especially heavy metal construction, rigid cabinet design and Shock-resistant feet for effective decoupling
• Supplied counterweight supports a wide variety of cartridges
• Elegant design with deep black Piano Finish and a fully gold anodised Platter
• Included Accessories: Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable with earth lead, AC power supply cord, Rubber Mat, Instruction Manual, Ortofon 2M Red cartridge & headshell

TECHNICAL DATA

Turntable Section:

• Type: Direct Drive Manual Turntable System
• Drive: Quartz driven upper-torque direct drive
• Motor: 16 pole, 3 phase, brushless DC motor
• Turntable Speeds: 3 speeds, fully manual (33 1/3, 45, 78 rpm)
• Starting Torque: 4500 g/cm
• Start-up time / rpm change: less than 0.2 sec.
• Wow and flutter: 0.01% WRMS
• S/N Ratio: More than 55 dB (DIN-B)
• Brake system: electronic brake
• Record weight: recommended 800g

Turntable Platter:

• Material: aluminium die-cast
• Diameter: 332 mm
• Weight: About 1.8 kg (including rubber mat)

Tonearm Section:

• Type: Universal Static Balanced S-Shaped
• Effective Length: 230 mm
• Overhang: 15 mm
• Tracking Error Angle: Less than 3 degree
• Offset Angle: 22°
• Stylus Pressure: 0 - 4 g
• Adjustable Tonearm Base (VTA): 0-6 mm
• Applicable Cartridge Weight: 3.5~8.5 g (including headshell is 13~18 g)
• Anti-Skating Range: 0 – 3 g
• Effective tonearm mass: 20 g (incl. headshell)

Terminals:

• 1x PHONO Out (gold-plated), 1x GND Earth Terminal

General:

• Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
• Power Consumption: 9 W
• Dimensions: 458 (W) x 368.3 (D) x 162.4 (H) mm
• Weight: approx. 12.8 kg
