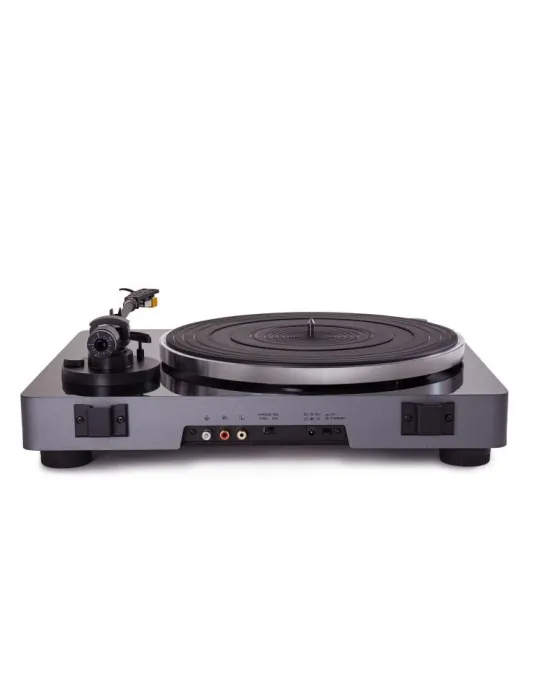

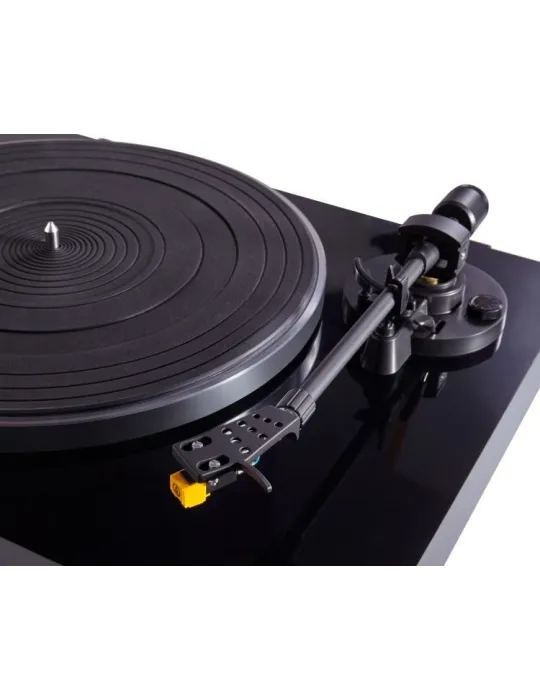

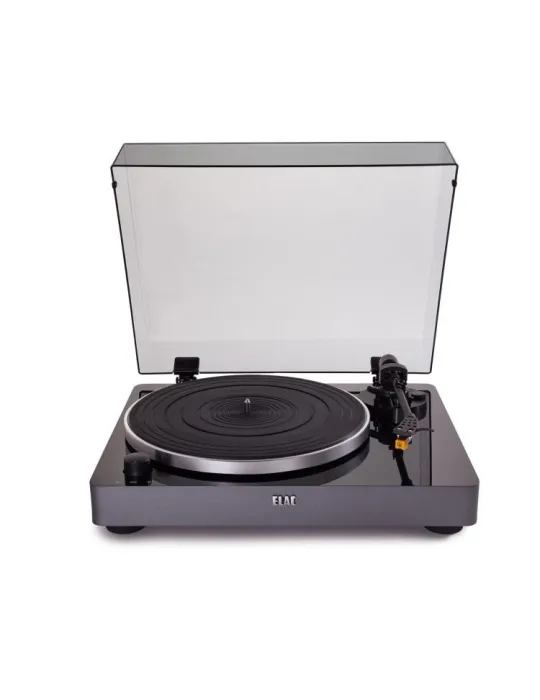

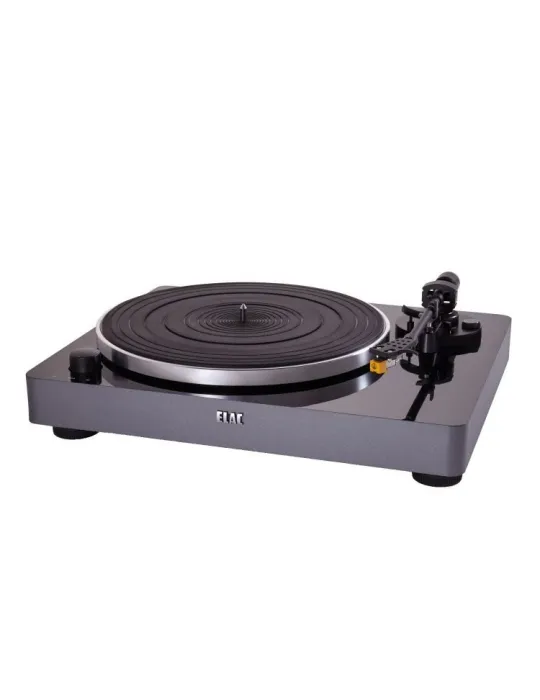

ELAC Miracord 50 mechaninis plokštelių grotuvas

SPECIFICATIONS

Turntable Section

• Drive System: Belt drive
• Motor: DC motor
• Selectable Speeds: 33⅓ and 45 rpm
• Motor Servo: Speed rotation and servo system
• Rotation Speed Variation: +/-1%
• Wow and Flutter: 1%
• Signal-to-Noise Ratio: -67 dB or higher (A-weighted) -60 dB or higher (unweighted)
• Platter: Aluminum die-cast
• Platter Diameter: 0 in / 300 mm

Tonearm Section

• Type: Aluminum tube, static-balanced
• Effective Arm Length: 8 in / 223.6 mm
• Stylus Pressure Range: 0 to 0 g
• Cartridge Weight Range: 5 to 6.0 g
• Effective Arm Mass: 4 g
• Overhang: 6 mm
• Offset Angle: 25 degrees
• Anti-Skating: Adjustment Supported
• Main Bearing: Stainless steel

Cartridge Section:

• Type: Audio-Technica AT91 moving magnet
• Stylus Construction: Bonded diamond
• Mount: Half-inch
• Frequency Response: 20 Hz to 20 kHz
• Channel Separation: >18 dB
• Channel Balance: 5 dB
• Vertical Tracking: Angle 20 degrees
• Stylus Pressure: 0 g +/-0.5 g
• Cartridge Weight: 0 g +/-0.5 g
• Headshell Weight: 0 g (including screws, nuts and wires)

Phono Equalizer Amplifier

• Type :Moving magnet (MM)
• Phono Output: 5 mV (1 kHz, 3.54 cm/sec)
• Line Output: 140 mV (-17 dBV)
• Phono/Line: Switchable
• Supported Load Impedance: 47 kΩ

Connector: RCA pin jack including RCA cable accessories
Voltage: 100 to 240 V AC / 50 to 60 Hz
Power Consumption: 1.5 W (less than 0.5 W at standby)
Dimensions: (WXHXD) 5.5 x 16.05 x 14.20
Weight: 12.10 lb
